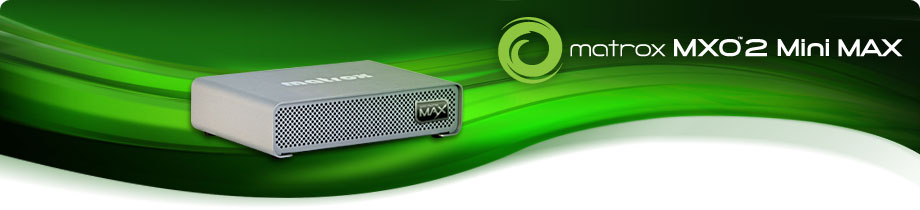

Affordable HDMI/analog HD/SD video and audio I/O

Opis urządzenia

Oprogramowanie

Specyfikacja techniczna

Porównanie modeli kart

Opinie użytkowników

Nagrody i recenzje






Share |


Matrox MXO2 Mini MAX Specyfikacja Techniczna

MAX H.264 Sprzętowy kodek do H.264
Rozdzielczość Even frame sizes from 64 x 64 to 1920 x 1080
Kompresja 100 Kb/s to 50 Mb/s
Szybkość klatek 15, 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 frames per second
Profile kodowania Baseline (CAVLC) and main (CABAC) profiles
Parametry
  • 2.0, 3.0, 3.1, 4.0, 4.1, and 4.2 level support
  • GOP structure
  • Constant bit rate (bit rate remains stable, quality varies depending on complexity of each frame)
  • Constant quality (each video frame is analyzed to deliver the targeted quality, bit rate varies while keeping the lowest possible bit rate)
  • Variable bit rate (squeezes out the highest possible quality at the average target bit rate )
  • Noise filtering (saves bits by reducing high frequencies in the video)
  • De-interlacing (ensures high-quality encodes of interlaced SD and 1080i source material)
  • Data rate slider (produces smoother or more abrupt transitions)
  • Sample rate monitoring (verifies compliance with targeted data rate)
  • Scene detection (provides multi-pass quality in a single pass with Apple Compressor)
Video
Wspierane formaty wideo
  • NTSC/PAL/NTSC-EIAJ
  • 720P 50/59.94
  • 1080I 50/59.94
  • 1080P 23.98/24/25/29.97/30
  • 1080PsF 23.98/24/25/29.97/30
HDMI wejścia
  • 1 HD input
  • HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
  • 8 channels of embedded audio
  • Standard Type A HDMI connector (19 pins)
HDMI wyjścia
  • 1 HD or SD output
  • HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
  • 8 channels of embedded audio
  • HDMI 1.4a flag setting through control panel for 3D monitoring
Composite wejście (nie aktywne  jeśli używane jest analog component input/output)
  • PAL/NTSC/NTSC-EIAJ
  • 10-bit ADC
  • 4x oversampling
  • Anti-aliasing filtering
  • Automatic gain control
  • RCA connector
Composite wyjście (nie aktywne  jeśli używane jest analog component input/output)
  • PAL/NTSC/NTSC-EIAJ
  • 12-bit DAC
  • 16x oversampling
  • RCA connector
S-Video wejście (nie aktywne  jeśli używane jest analog component input/output)
  • PAL/NTSC/NTSC-EIAJ
  • 10-bit ADC
  • 4x oversampling
  • Anti-aliasing filtering
  • Automatic gain control
  • 4-pin mini-DIN S-Video connector (75 Ω), terminated (via included adapter)
S-Video wyjście  (nie aktywne  jeśli używane jest analog component input/output)
  • PAL/NTSC/NTSC-EIAJ
  • 12-bit DAC
  • 16x oversampling
  • 4-pin mini-DIN S-Video connector (via included adapter)
Component wejście (nie aktywne jesli używane jest  composite lub S-Video input/output)
  • Switchable between SD and HD
  • EIA-770.3 compliant
  • 10-bit ADC
  • Anti-aliasing filtering
  • RCA connectors
Component wyjście(nie aktywne jesli używane jest  composite lub S-Video input/output)
  • Switchable between SD and HD
  • EIA-770.3 compliant
  • 12-bit DAC
  • 4x oversampling
  • RCA connectors
HD analog component video passthrough performance
  • Frequency response Y: +/- 1.0 dB max to 28 MHz
  • Frequency response Pb, Pr: +/- 1.0 dB max to 12 MHz
  • Component channel delay: < 8 ns
  • Component S/N (Y, Pb, Pr): > 50 dB, unified weighted
SD analog component video passthrough performance
  • Frequency response Y: +/- 0.75 dB max to 5 MHz
  • Frequency response Pb, Pr: +/- 1.0 dB max to 2 MHz
  • Component channel delay: < 8 ns
  • Component S/N (Y, Pb, Pr): > 54 dB, unified weighted
S-Video and composite video performance
  • Amplitude error: < 4%
  • Frequency response: +/- 0.75 dB max to 5 MHz
  • Diff. Gain: < 2%, Diff. Phase: < 1 degree
  • S/N: > 54 dB, unified weighted
Audio
analogowe wejścia
  • 2 channels unbalanced audio via RCA connectors
  • Input impedance: > 10 kΩ
  • Line level with 18 dB headroom (max level: +8 dBv)
Analogowe wyjścia
  • 2 channels unbalanced audio via RCA connectors
  • Output impedance: 200 Ω
  • Line level with 18 dB headroom (max level: +8 dBv)
Unbalanced analog audio performance
  • Sampling frequency: 48 kHz (using 128x oversampling)
  • Quantization: 24 bits
  • S/N: > 90 db
  • THDN at 1 kHz, nominal level: < 0.02%
  • Frequency response: +/- 0.5 dB, 20 Hz to 20 kHz
  • Channel separation: > 100 db
HDMI audio wejście
  • 8-channels embedded audio
  • 24-bit, 48 kHz
HDMI audio wyjście
  • 8-channels embedded audio
  • 24-bit, 48 kHz
Skalowanie
Dedykowany sprzętowy skaler
  • Multi-tap 10-bit realtime processing
  • HD to SD downscaling - Proper conversion of the HD color space to the SD color space and proper aspect ratio conversion to anamorphic, letterbox, and center cut are provided. You can monitor or record an SD master of an HD project in real time.
  • SD to HD upscaling - Proper conversion of the SD color space to the HD color space is performed. Footage with a 4:3 aspect ratio will be "pillarboxed". SD 16:9 footage will be scaled to full screen.
  • Cross conversions from 720 to 1080 and 1080 to 720
  • All scaling operations can be accompanied by frame rate conversion with 2:3:2:3 and 2:3:3:2 cadences to facilitate monitoring 23.98 fps footage on a monitor that does not support the specific frame rate.
Specjalne właściwości
Program Matrox HDMI Calibration  Turns your HDMI display into a monitor you can trust
wsparcie dla 3D HDMI 1.4a flag setting through control panel
Oprogramowanie
Edycja wideo Adobe Premiere Pro, Apple Final Cut Pro, Apple Final Cut Pro X, Avid Media Composer 6, Avid NewsCutter 10, Avid Symphony 6 and Boris Media 100
Grafika, animacja Adobe After Effects, Adobe Photoshop, Apple Color, Apple Motion, Apple Soundtrack Pro, Eyeon Fusion, NewTek LightWave 3D
Streaming Adobe Flash Media Live Encoder, Microsoft Expression, QuickTime Broadcaster, Telestream Wirecast
Darmowe  programy dołanczane do kart Matroxa
  • Matrox Vetura Capture for Mac
  • Matrox Vetura Playback for Mac
  • Matrox A/V Tools for the PC
Ogólne
Rozmiary L: 16.6 cm (6.5") × W: 11 cm (4.3") × H: 4 cm (1.6")
Waga 0.6 lbs (280 g)
Spełniane Normy
  • FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
  • RoHS Directive 2002/95/EC
Gwarancja i serwis 3-lata gwarancji i wsparcie telefoniczne
Electrical and Operating Requirements
Zasilanie
  • Included AC/DC adapter: 100-240 V AC 50-60 Hz (5 V DC, 3 A max)
  • MXO2 Mini unit: 5-25 V DC, 2.5 mm barrel-type connector
  • Total power consumption: 9 Watts
Zewnętrzne warunki pracy
  • Operating temperature: 0 to 40º C (32 to 104º F)
  • Storage temperature: –40 to 75º C (-40 to 167º F)
  • Maximum altitude for operation: 3,000 meters
  • Maximum altitude for transport: 12,000 meters
  • Operating humidity: 20 to 80% relative humidity (non-condensing)
  • Storage humidity: 5 to 95% relative humidity (non-condensing)
zawartość pudełka z kartą
W boxie
  • Matrox MXO2 Mini input/output urządzenie
  • Matrox MXO2 PCIe kabel  (1 meter)
  • Matrox MXO2 Mini zewnetrzny zasilacz sieciowy
  • dwa adaptery S-Video
  • Jeden z wymienionych adapterów : Matrox MXO2 PCIe host adapter lub  Matrox MXO2 ExpressCard/34 adapter lub  Matrox MXO2 Thunderbolt adapter

(kabel Apple Thunderbolt cable  nie jest dołanczany do zestawu.)

Specyfikacja adaptera
Matrox PCIe host adapter
  • Standard low-profile PCIe (x1) card
  • PCB dimensions: L: 6.6 cm × H: 6.9 cm (2.6" × 2.7")
  • Overall thickness including components: 1.9 cm (0.75")
Matrox ExpressCard/34 adapter
  • Standard ExpressCard/34
  • Dimensions: L: 9.6 cm × W: 3.3 cm × H: 1.3 cm (3.8" × 1.3" × 0.5")
Matrox MXO2 Thunderbolt adapter Dimensions: L: 8.7 cm × W: 4.8 cm × H: 1.9 cm (3.4" × 1.9" × .75")

(An Apple Thunderbolt cable purchased from Apple is required to connect the Matrox MXO2 Thunderbolt adapter to your computer.)
