• NTSC/PAL/NTSC-EIAJ
• 720P 50/59.94
• 1080I 50/59.94
• 1080P 23.98/24/25/29.97/30
• 1080PsF 23.98/24/25/29.97/30

• 1 HD input
• HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
• 8 channels of embedded audio
• Standard Type A HDMI connector (19 pins)

• 1 HD or SD output
• HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
• 8 channels of embedded audio
• HDMI 1.4a flag setting through control panel for 3D monitoring

• 1 SD or HD input
• 16 channels of embedded audio on Mac
• 8 channels of embedded audio on the PC
• Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M
• BNC connector (75 Ω), terminated
• Equalized input for maximum cable length support

• 2 indentical SD or HD outputs for simultaneous monitoring and recording
• 16 channels of embedded audio on Mac
• 8 channels of embedded audio on the PC
• Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M
• BNC connector (75 Ω)

• PAL/NTSC/NTSC-EIAJ
• 12-bit ADC
• 2x oversampling
• Anti-aliasing filtering
• Automatic gain control
• BNC connector (75 Ω), terminated

• PAL/NTSC/NTSC-EIAJ
• 12-bit DAC
• 8x oversampling
• BNC connector

• PAL/NTSC/NTSC-EIAJ
• 12-bit ADC
• 2x oversampling
• Anti-aliasing filtering
• Automatic gain control
• 4-pin mini-DIN S-Video connector (75 Ω), terminated

• PAL/NTSC/NTSC-EIAJ
• 12-bit DAC
• 8x oversampling
• 4-pin mini-DIN S-Video connector

• Switchable between SD and HD
• EIA-770.3 compliant
• 12-bit ADC
• Anti-aliasing filtering
• BNC connector (75 Ω), terminated

• Switchable between SD and HD
• EIA-770.3 compliant
• 12-bit DAC
• 2x oversampling
• BNC connector

• Frequency response Y: +/- 1.0 dB max to 28 MHz
• Frequency response Pb, Pr: +/- 1.0 dB max to 12 MHz
• Component channel delay: < 8 ns
• Component S/N (Y, Pb, Pr): > 50 dB, unified weighted

• Amplitude error: < 4%
• Frequency response: +/- 0.5 dB max to 5 MHz
• 2T pulse response: 1.0% max
• Diff. Gain: < 2%, Diff. Phase: < 1 degree
• S/N: > 58 dB, unified weighted

• 2 channels unbalanced audio via RCA connectors
• Input impedance: Hi-Z
• Line level with 18 dB headroom (max level)


• 2 channels balanced audio via XLR connectors
• Nominal levels: +4 dBu (+4 dBm)
• Input impedance: Hi-Z
• Headroom (max level): 18 dB

• 2 channels unbalanced audio via RCA connectors
• Output impedance: 100 Ω
• Line level with 18 dB headroom (max level)


• 2 channels balanced audio via XLR connectors
• Nominal levels: +4 dBu (+4 dBm)
• Output impedance: 50 Ω
• Headroom (max level): 18 dB

• 16 channels embedded audio
• 24-bit, 48 kHz

• 16 channels embedded audio
• 24-bit, 48 kHz

• 8-channels embedded audio
• 24-bit, 48 kHz

• 8-channels embedded audio
• 24-bit, 48 kHz

• Sampling frequency: 48 kHz (using 64x oversampling)
• Quantization: 24 bits
• S/N: > 85 dB
• THDN at 1 kHz, nominal level: < 0.05%

• HD analog tri-level sync or SD analog bi-level black burst
• BNC connector (75 Ω), terminated

• Multi-tap 10-bit realtime processing
• HD to SD downscaling - Proper conversion of the HD color space to the SD color space and proper aspect ratio conversion to anamorphic, letterbox, and center cut are provided. You can monitor or record an SD master of an HD project in real time.
• SD to HD upscaling - Proper conversion of the SD color space to the HD color space is performed. Footage with a 4:3 aspect ratio will be "pillarboxed". SD 16:9 footage will be scaled to full screen.
• Cross conversions from 720 to 1080 and 1080 to 720
• All scaling operations can be accompanied by frame rate conversion with 2:3:2:3 and 2:3:3:2 cadences to facilitate monitoring 23.98 fps footage on a monitor that does not support the specific frame rate.

• Closed captioning capture and playback for Final Cut Pro via Matrox 4Vanc
• Closed captioning support for Adobe Premiere Pro

• Matrox Vetura Capture for Mac
• Matrox Vetura Playback for Mac
• Matrox A/V Tools for the PC

• FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
• RoHS Directive 2002/95/EC

• Line Voltage: 100-240V AC
• Frequency: 50-60 Hz
• Input: External AC/DC adapter - IEC320-C14
• Output: +12V DC, 3A max
• Total power consumption: 15 Watts

• Operating temperature: 0 to 40º C (32 to 104º F)
• Storage temperature: –40 to 75º C (-40 to 167º F)
• Maximum altitude for operation: 3,000 meters
• Maximum altitude for transport: 12,000 meters
• Operating humidity: 20 to 80% relative humidity (non-condensing)
• Storage humidity: 5 to 95% relative humidity (non-condensing)

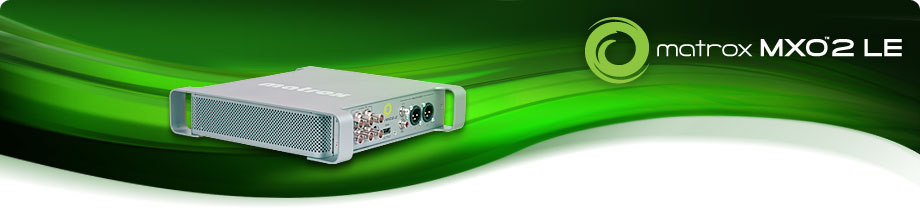

• Matrox MXO2 LE input/output device
• Matrox MXO2 PCIe cable (1 meter)
• Matrox MXO2 LE external power supply and IEC-C13 power cord
• One of the following: Matrox MXO2 PCIe host adapter or Matrox MXO2 ExpressCard/34 adapter or Matrox MXO2 Thunderbolt adapter

(kabel Apple Thunderbolt cable  nie jest dołanczany do zestawu.)

(A third-party RS-422 cable is required for machine control.)

• Standard low-profile PCIe (x1) card
• PCB dimensions: L: 6.6 cm × H: 6.9 cm (2.6" × 2.7")
• Overall thickness including components: 1.9 cm (0.75")

• Standard ExpressCard/34
• Dimensions: L: 9.6 cm × W: 3.3 cm × H: 1.3 cm (3.8" × 1.3" × 0.5")

• Dimensions: L: 8.7 cm × W: 4.8 cm × H: 1.9 cm (3.4" × 1.9" × .75")

(An Apple Thunderbolt cable purchased from Apple is required to connect the Matrox MXO2 Thunderbolt adapter to your computer.)
