• 2.0, 3.0, 3.1, 4.0, 4.1, and 4.2 level support
• GOP structure
• Constant bit rate (bit rate remains stable, quality varies depending on complexity of each frame)
• Constant quality (each video frame is analyzed to deliver the targeted quality, bit rate varies while keeping the lowest possible bit rate)
• Variable bit rate (squeezes out the highest possible quality at the average target bit rate )
• Noise filtering (saves bits by reducing high frequencies in the video)
• De-interlacing (ensures high-quality encodes of interlaced SD and 1080i source material)
• Data rate slider (produces smoother or more abrupt transitions)
• Sample rate monitoring (verifies compliance with targeted data rate)
• Scene detection (provides multi-pass quality in a single pass with Apple Compressor)

• NTSC/PAL/NTSC-EIAJ
• 720P 50/59.94
• 1080I 50/59.94
• 1080P 23.98/24/25/29.97/30
• 1080PsF 23.98/24/25/29.97/30

• 1 HD input
• HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
• 8 channels of embedded audio
• Standard Type A HDMI connector (19 pins)

• 1 HD or SD output
• HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
• 8 channels of embedded audio
• HDMI 1.4a flag setting through control panel for 3D monitoring

• 1 SD or HD input
• 16 channels of embedded audio on Mac
• 8 channels of embedded audio on the PC
• Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M
• BNC connector (75 Ω), terminated
• Equalized input for maximum cable length support

• 1 SD or HD output
• 16 channels of embedded audio on Mac
• 8 channels of embedded audio on the PC
• Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M
• BNC connector (75 Ω)

• PAL/NTSC/NTSC-EIAJ
• 12-bit ADC
• 2x oversampling
• Anti-aliasing filtering
• Automatic gain control
• BNC connector (75 Ω), terminated

• PAL/NTSC/NTSC-EIAJ
• 12-bit DAC
• 8x oversampling
• BNC connector

• PAL/NTSC/NTSC-EIAJ
• 12-bit ADC
• 2x oversampling
• Anti-aliasing filtering
• Automatic gain control
• 4-pin mini-DIN S-Video connector (75 Ω), terminated (via third-party adapter purchased separately)

• PAL/NTSC/NTSC-EIAJ
• 12-bit DAC
• 8x oversampling
• 4-pin mini-DIN S-Video connector (via third-party adapter purchased separately)

• Switchable between SD and HD
• EIA-770.3 compliant
• 12-bit ADC
• Anti-aliasing filtering
• BNC connector (75 Ω), terminated

• Switchable between SD and HD
• EIA-770.3 compliant
• 12-bit DAC
• 2x oversampling
• BNC connector

• Frequency response Y: +/- 1.0 dB max to 28 MHz
• Frequency response Pb, Pr: +/- 1.0 dB max to 12 MHz
• Component channel delay: < 8 ns
• Component S/N (Y, Pb, Pr): > 50 dB, unified weighted

• Amplitude error: < 4%
• Frequency response: +/- 0.5 dB max to 5 MHz
• 2T pulse response: 1.0% max
• Diff. Gain: < 2%, Diff. Phase: < 1 degree
• S/N: > 58 dB, unified weighted

• 2 channels balanced audio via XLR connectors
• Nominal levels: +4 dBu (+4 dBm)
• Input impedance: Hi-Z
• Headroom (max level): 18 dB

• 2 channels unbalanced audio via RCA connectors
• Output impedance: 100 Ω
• Line level with 18 dB headroom (max level)


• 4 channels balanced audio via XLR connectors
• Nominal levels: +4 dBu (+4 dBm)
• Output impedance: 50 Ω
• Headroom (max level): 18 dB

• 2 channels unbalanced
• 1 x BNC connector (75 Ω), terminated
• Maximum input level: 5 Vp-p

• 2 channels unbalanced
• 1 x BNC connector (75 Ω), terminated
• Nominal output level: 1Vp-p

• 16 channels embedded audio
• 24-bit, 48 kHz

• 16 channels embedded audio
• 24-bit, 48 kHz

• 8-channels embedded audio
• 24-bit, 48 kHz

• 8-channels embedded audio
• 24-bit, 48 kHz

• Sampling frequency: 48 kHz (using 64x oversampling)
• Quantization: 24 bits
• S/N: > 85 dB
• THDN at 1 kHz, nominal level: < 0.05%

• HD analog tri-level sync or SD analog bi-level black burst
• BNC connector (75 Ω), terminated

• Multi-tap 10-bit realtime processing
• HD to SD downscaling - Proper conversion of the HD color space to the SD color space and proper aspect ratio conversion to anamorphic, letterbox, and center cut are provided. You can monitor or record an SD master of an HD project in real time.
• SD to HD upscaling - Proper conversion of the SD color space to the HD color space is performed. Footage with a 4:3 aspect ratio will be "pillarboxed". SD 16:9 footage will be scaled to full screen.
• Cross conversions from 720 to 1080 and 1080 to 720
• All scaling operations can be accompanied by frame rate conversion with 2:3:2:3 and 2:3:3:2 cadences to facilitate monitoring 23.98 fps footage on a monitor that does not support the specific frame rate.

• Closed captioning capture and playback for Final Cut Pro via Matrox 4Vanc
• Closed captioning support for Adobe Premiere Pro

• Matrox Vetura Capture for Mac
• Matrox Vetura Playback for Mac
• Matrox A/V Tools for the PC
• Matrox MAX H.264 Capture for the PC

• 3/4-length PCIe card
• L: 24.7 cm (9.3") × W: 9.9 cm (3.9")
• Overall thickness including components 1.9 cm (3/4”)

• FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
• RoHS Directive 2002/95/EC

• Operating temperature: 0 to 40º C (32 to 104º F)
• Storage temperature: –40 to 75º C (-40 to 167º F)
• Maximum altitude for operation: 3,000 meters
• Maximum altitude for transport: 12,000 meters
• Operating humidity: 20 to 80% relative humidity (non-condensing)
• Storage humidity: 5 to 95% relative humidity (non-condensing)

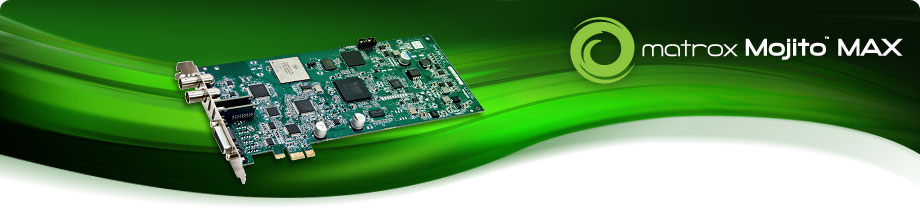

• Matrox Mojito MAX card
• Matrox Mojito MAX breakout cable
• HDMI cable (Type A-to-Type C)

(An S-Video adapter cable - two BNC male to S-Video - is required for connecting an S-Video device to your Mojito MAX input/output.)

(A third-party RS-422 cable is required for machine control.)
