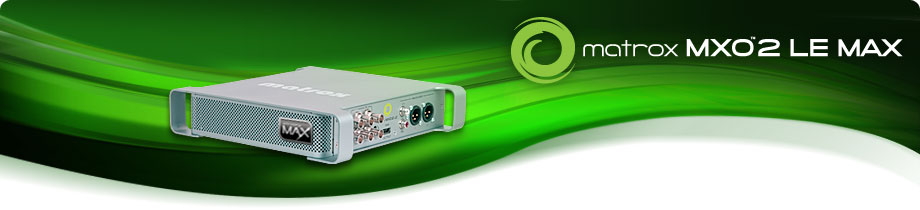

Matrox MXO2 LE MAX Specyfikacja Techniczna

MAX H.264 sprzetowe kodowanie
Rozdzielczość	Even frame sizes from 64 x 64 to 1920 x 1080
Bit rates	100 Kb/s to 50 Mb/s
Szybkość klatek	15, 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 frames per second
Profile kodowania	Baseline (CAVLC) and main (CABAC) profiles
Ustawienia	2.0, 3.0, 3.1, 4.0, 4.1, and 4.2 level support GOP structure Constant bit rate (bit rate remains stable, quality varies depending on complexity of each frame) Constant quality (each video frame is analyzed to deliver the targeted quality, bit rate varies while keeping the lowest possible bit rate) Variable bit rate (squeezes out the highest possible quality at the average target bit rate) Noise filtering (saves bits by reducing high frequencies in the video) De-interlacing (ensures high-quality encodes of interlaced SD and 1080i source material) Data rate slider (produces smoother or more abrupt transitions) Sample rate monitoring (verifies compliance with targeted data rate) Scene detection (provides multi-pass quality in a single pass with Apple Compressor)

Video

Wspierane formaty wideo

NTSC/PAL/NTSC-EIAJ
720P 50/59.94
1080I 50/59.94
1080P 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30

HDMI wejścia

1 HD input
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
8 channels of embedded audio
Standard Type A HDMI connector (19 pins)

HDMI wyjścia

1 HD or SD output
HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit)
8 channels of embedded audio
HDMI 1.4a flag setting through control panel for 3D monitoring

SDI wejścia

1 SD or HD input
16 channels of embedded audio on Mac
8 channels of embedded audio on the PC
Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M
BNC connector (75 Ω), terminated
Equalized input for maximum cable length support

SDI wyjścia

2 indentical SD or HD outputs for simultaneous monitoring and recording
16 channels of embedded audio on Mac
8 channels of embedded audio on the PC
Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M
BNC connector (75 Ω)

Compositewejścia

PAL/NTSC/NTSC-EIAJ
12-bit ADC
2x oversampling
Anti-aliasing filtering
Automatic gain control
BNC connector (75 Ω), terminated

Composite wyjścia

PAL/NTSC/NTSC-EIAJ
12-bit DAC
8x oversampling
BNC connector

S-Video wejścia

PAL/NTSC/NTSC-EIAJ
12-bit ADC
2x oversampling
Anti-aliasing filtering
Automatic gain control
4-pin mini-DIN S-Video connector (75 Ω), terminated

S-Video wyjścia

PAL/NTSC/NTSC-EIAJ
12-bit DAC
8x oversampling
4-pin mini-DIN S-Video connector

Component wejścia

Switchable between SD and HD
EIA-770.3 compliant
12-bit ADC
Anti-aliasing filtering
BNC connector (75 Ω), terminated

Component wyjścia

Switchable between SD and HD
EIA-770.3 compliant
12-bit DAC
2x oversampling
BNC connector

HD analog component video passthrough performance

Frequency response Y: +/- 1.0 dB max to 28 MHz
Frequency response Pb, Pr: +/- 1.0 dB max to 12 MHz
Component channel delay: < 8 ns
Component S/N (Y, Pb, Pr): > 50 dB, unified weighted

SD analog component video passthrough performance

Amplitude error: < 4%
Frequency response: +/- 0.5 dB max to 5 MHz
2T pulse response: 1.0% max
Diff. Gain: < 2%, Diff. Phase: < 1 degree
S/N: > 58 dB, unified weighted

Audio

Analogowe wejścia

2 channels unbalanced audio via RCA connectors
Input impedance: Hi-Z
Line level with 18 dB headroom (max level)

2 channels balanced audio via XLR connectors
Nominal levels: +4 dBu (+4 dBm)
Input impedance: Hi-Z
Headroom (max level): 18 dB

Analogowe wyjścia

2 channels unbalanced audio via RCA connectors
Output impedance: 100 Ω
Line level with 18 dB headroom (max level)

2 channels balanced audio via XLR connectors
Nominal levels: +4 dBu (+4 dBm)
Output impedance: 50 Ω
Headroom (max level): 18 dB

SDI audio wejście

16 channels embedded audio
24-bit, 48 kHz

SDI audio wyjście

16 channels embedded audio
24-bit, 48 kHz

HDMI audio wejście

8-channels embedded audio
24-bit, 48 kHz

HDMI audio wyjście

8-channels embedded audio
24-bit, 48 kHz

Balanced analog audio performance

Sampling frequency: 48 kHz (using 64x oversampling)
Quantization: 24 bits
S/N: > 85 dB
THDN at 1 kHz, nominal level: < 0.05%

Genlock

Zalecane wejścia

HD analog tri-level sync or SD analog bi-level black burst
BNC connector (75 Ω), terminated

Scaling

Dedykowany sprzętowy skaler

Multi-tap 10-bit realtime processing
HD to SD downscaling - Proper conversion of the HD color space to the SD color space and proper aspect ratio conversion to anamorphic, letterbox, and center cut are provided. You can monitor or record an SD master of an HD project in real time.
SD to HD upscaling - Proper conversion of the SD color space to the HD color space is performed. Footage with a 4:3 aspect ratio will be "pillarboxed". SD 16:9 footage will be scaled to full screen.
Cross conversions from 720 to 1080 and 1080 to 720
All scaling operations can be accompanied by frame rate conversion with 2:3:2:3 and 2:3:3:2 cadences to facilitate monitoring 23.98 fps footage on a monitor that does not support the specific frame rate.

Special Features

Program Matrox HDMI Calibration

Turns your HDMI display into a monitor you can trust

Closed captioning

Closed captioning capture and playback for Final Cut Pro via Matrox 4Vanc
Closed captioning support for Adobe Premiere Pro

AFD support

Capture and playback of AFD data for Final Cut Pro 7 via Matrox 4Vanc

wsparcie dla 3D

HDMI 1.4a flag setting through control panel

Specjalne właściwości

Edycja wideo

Adobe Premiere Pro, Apple Final Cut Pro, Apple Final Cut Pro X, Avid Media Composer 6, Avid NewsCutter 10, Avid Symphony 6 and Boris Media 100

Grafika, animacja

Adobe After Effects, Adobe Photoshop, Apple Color, Apple Motion, Apple Soundtrack Pro, Eyeon Fusion, NewTek LightWave 3D

Streaming

Adobe Flash Media Live Encoder, Microsoft Expression, QuickTime Broadcaster, Telestream Wirecast

Darmowe programy dołanczane do kart Matroxa

Matrox Vetura Capture for Mac
Matrox Vetura Playback for Mac
Matrox A/V Tools for the PC

Ogólne

Rozmiary

L: 23.7 cm (9.3") × W: 24.1 cm (9.5") × H: 5.1 cm (2")

Waga

2.75 lbs (1.245 kg)

Deck control

via RS-422

Spełniane Normy

FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
RoHS Directive 2002/95/EC

Gwarancja i serwis

3-year limited warranty with free telephone support

Electrical and Operating Requirements

Zasilanie

Line Voltage: 100-240V AC
Frequency: 50-60 Hz
Input: External AC/DC adapter - IEC320-C14
Output: +12V DC, 3A max
Total power consumption: 15 Watts

Zewnętrzne warunki pracy

Operating temperature: 0 to 40º C (32 to 104º F)
Storage temperature: –40 to 75º C (-40 to 167º F)
Maximum altitude for operation: 3,000 meters
Maximum altitude for transport: 12,000 meters
Operating humidity: 20 to 80% relative humidity (non-condensing)
Storage humidity: 5 to 95% relative humidity (non-condensing)

zawartość pudełka z kartą

W boxie

Matrox MXO2 LE input/output device
Matrox MXO2 PCIe cable (1 meter)
Matrox MXO2 LE external power supply and IEC-C13 power cord
One of the following: Matrox MXO2 PCIe host adapter or Matrox MXO2 ExpressCard/34 adapter or Matrox MXO2 Thunderbolt adapter

(kabel Apple Thunderbolt cable nie jest dołanczany do zestawu.)

(A third-party RS-422 cable is required for machine control.)

Adapter Specifications

Matrox PCIe host adapter

Standard low-profile PCIe (x1) card
PCB dimensions: L: 6.6 cm × H: 6.9 cm (2.6" × 2.7")
Overall thickness including components: 1.9 cm (0.75")

Matrox ExpressCard/34 adapter

Standard ExpressCard/34
Dimensions: L: 9.6 cm × W: 3.3 cm × H: 1.3 cm (3.8" × 1.3" × 0.5")

Matrox MXO2 Thunderbolt adapter

Dimensions: L: 8.7 cm × W: 4.8 cm × H: 1.9 cm (3.4" × 1.9" × .75")

(An Apple Thunderbolt cable purchased from Apple is required to connect the Matrox MXO2 Thunderbolt adapter to your computer.)
